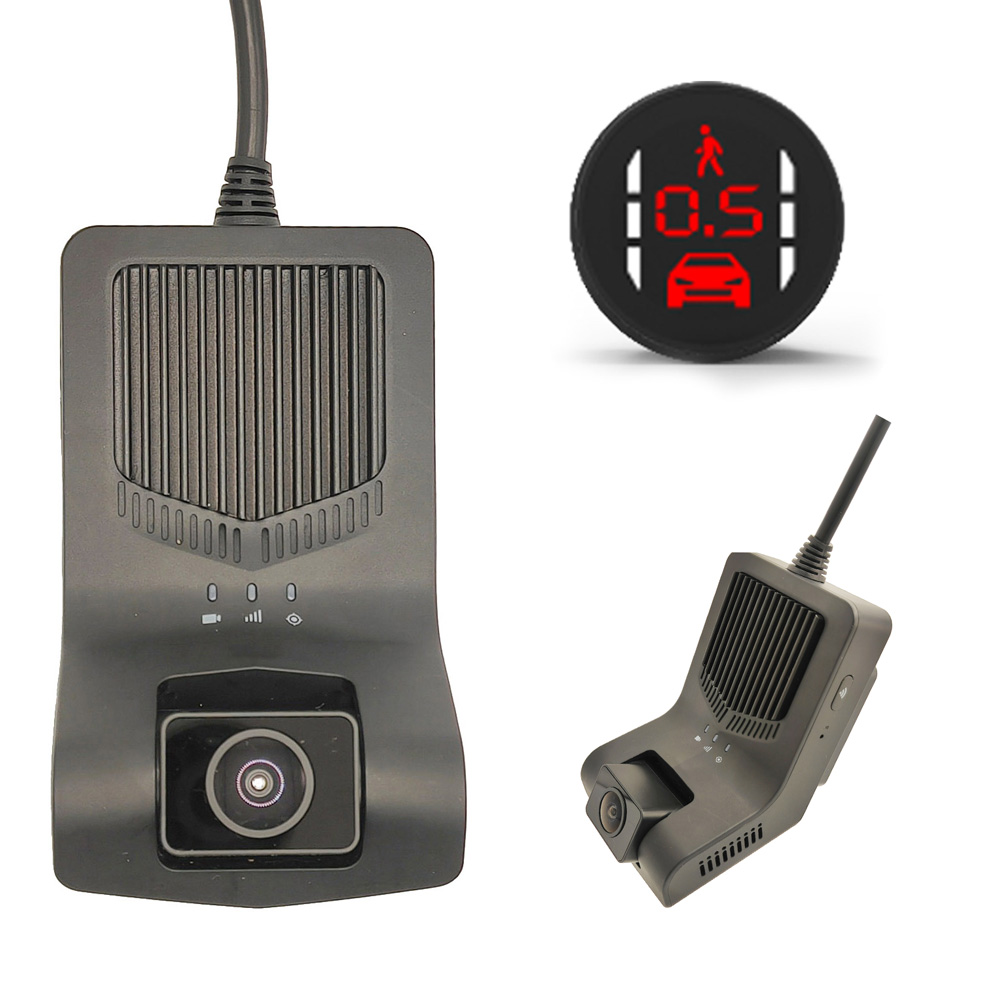

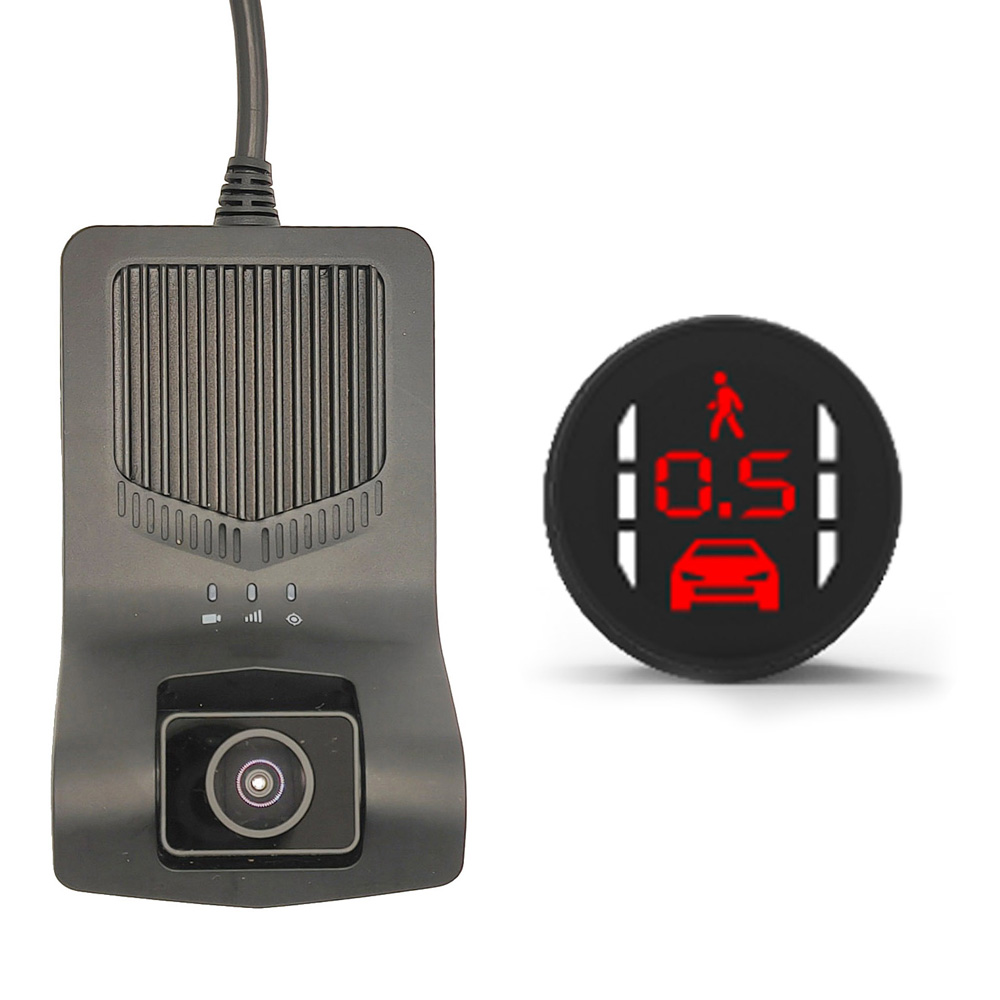

LS508 AI Cloud ADAS System with DMS Camera for Fleet Management
Description
LS508, a comprehensive auto active safety product, integrates satellite positioning, video surveillance, and active safety functions. The product meets the needs of fleet monitoring, management, driving safety and regulating driving behavior. Based onthe advanced deep learning technology, the active safety functions — advanced assisted driving system(ADAS), driver monitoring system(DMS), and Lane ChangingAssistance(LCA), can be applied to complex driving scenarios, addressing the demands of safety, timeliness and efficiency in transportation, and improving theoverall user experience. AI technology is integrated into the feeling of vehicle driving, which further regulates the driver’s safe driving behavior.
4G DVR version
Driver fatigue monitor system +ADAS
Driver fatigue monitor:
- Fatigue monitoring
- Distracted monitoring
- Smoking/Phone call/drinking/yawning
- Seat belt warning
ADAS:
- Foward collision warning
- Virtual Bumper
- Lane departure warning
- Front vehicle distance warning
- Pedestrian Collision Warning
Monitor center:
- Alarm record
- Alarm picture record
- Real time video
- Vehicle tracking
- History replay
AI Functions
This device uses machine vision based on video analysis technology to automaticallyidentify road risks and unsafe driving behaviors of drivers. Any detected event triggers an audible alert to alert the driver in real time, and these events are alsosynchronized to the platform.
Warning: AI function must be calibrated and configured in strict accordance withtheinstallation and operation instructions, otherwise, the AI function cannot work properly.
ADAS Functions
Forward Collision Warning
Identify the relative speed of the vehicle and the vehicle in front in real time whiledriving, alert the driver if there is a potential collision to ensure sufficient emergencytime.
Voice Alert：Watch out for the car ahead
Pedestrian Collision Warning
Identify pedestrians, cyclists, and motorcyclists in front of the vehicle in real timewhile driving, alert the driver if there is a potential collision to keep a safe distance all the time.
Voice Alert：Watch out for pedestrians
Lane Departure Warning
Identify the lane-departing behavior in real time while driving, alert the driver if thereis unconsciously lane-departing to ensure driving safety.
Voice Alert：Lane departure
Virtual Bumper
When the vehicle is driving at low speed, identify the relative speed of this vehicle and the vehicle in front. Alert the driver to maintain a safe distance when there is apotential collision hazard.
Voice Alert： Please_keep_distance
Stop & Go
When the vehicle is stationary and the vehicle in front of it begins to move, remindthe driver that it is time to start.
Voice Alert： Please start
Rear Collision Warning
Identify the relative speed of the vehicle and the vehicle behind while driving, alert
driver if there is a potential collision to ensure sufficient emergency time.
Voice Alert：Watch out for the rear car
Lane Changing Assistance
Alert drivers to the risk of collision when they start to change lanes and there arecarsbehind them on the side.
Voice Alert：Watch out for side cars when changing lanes
DMS Functions
Fatigue Driving
Identify and warn the driver’s fatigue state (eyes closed, yawning) to ensure drivingsafety.
Voice Alert： please take a break
Distraction Driving
Identify and warn the driver’s driving behavior without looking ahead on road(lookingleft and right, looking down for things) while driving to ensure driving safety.
Voice Alert： Please keep attention
Smoking Warning
Identify and warn drivers of smoking behavior while driving to ensure driving safety.
Voice Alert：No smoking
Calling Warning
Identify and warn the driver’s mobile phone calling behavior when driving to ensuredriving safety.
Voice Alert：No cellphone using
Seat belt detection
The device identifies the seat belt status and issues a warning to the driver whenthedriver drives without the seat belt to ensure driving safety.
Voice Alert：Please fasten your seat belt
Installation
Mounting Position Related Regulations
Note: The following recommendations do not constitute legal advice and shouldn’t be relied upon in lieu of consultation with your own advisors.

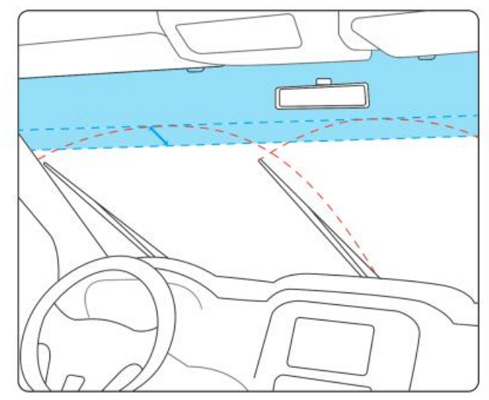

For Dash Cams in the US
Federal Motor Carrier Safety Administration (FMCSA) regulations permit dash camsto be installed in either of the following positions: • From the top of the windshield to 8.5 inches below the upper edge of the areaswept by the windshield wipers

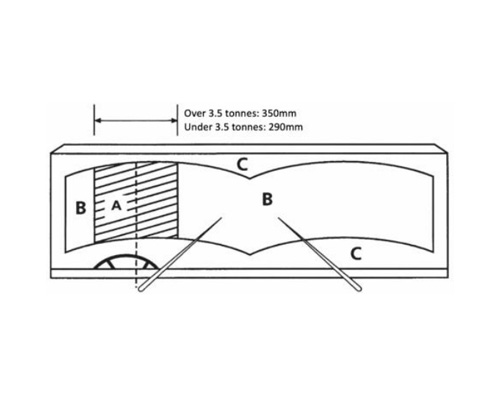

For Dash Cams in the UK
To determine camera placement options, the windscreen is divided into zones:
- Zone A: This is a vertical area 29cm wide (for vehicles over 3.5 tons is 35cm), centered on the steering wheel and contained within the swept area of the
windscreen. - Zone B is the remainder of the swept area of the windscreen. No part of the dash cam (including the mount and wire) can intrude more than 10mm(1cm) into Zone A and more than 40mm (4cm) into Zone B.
Product Specification
| Item | |
| CPU | Dual-Core, 1.2GHz |
| RAM | 2GB 16-bit DDR3(L) memory |
| Wi-Fi | Support |
| 4G | Support |
| GPS | Support |
| (Video/Audio) | |
| Supported video formats | H265/H264 |
| Supported audio formats | PCM, WAV |
| Built-in speaker | Support, mono |
| Built-in MIC | Support, mono |
| Front Camera | |
| Sensor Type | 1/2.9”, 2-megapixel CMOS sensor |
| FOV | D:125° H:105° V:58° Resolution 1920*1080 |
| Video frame rate | 1080p@30fps |
| Inward-facing camera | |
| Interface | 1/3”, 2-megapixel CMOS sensor |
| FOV | D:120° H:100° V:45° Resolution 1920*1080 |
| Video frame rate | 1080p@30fps |
| Infrared LED | Support |
| Other | |
| OS | Linux |
| Power | ACC or Cigarette power voltage 12-24V |
| G-Sensor | 3-axis, acceleration sensor |
| Storage | TF card, up to 256GB, Class10 and above, FAT32 |
| Case | |
| Type | Standalone type |
| Color | Black |
| Weight | 198 g (approximately) |
| Dimensions | 66mmx88mmx98mm |
| Operating environment | |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Relative Humidity | 10% to 90%, non-condensing |
| Atmospheric pressure | 860Mbar～1060Mbar |
| Package Contents | |
| LS508 Device×1, Emgy.Alarm Button×1, GPS External Antenna×1, Car Charger×1, SIMCard Removal Pin×1, ACC Hard-wire Kit(Optional) * The configuration may vary in different regions. | |

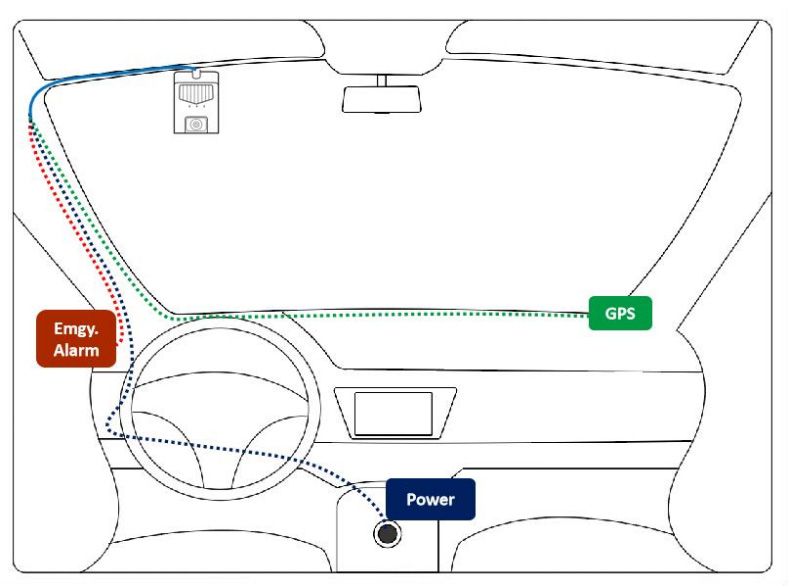

Installation instruction

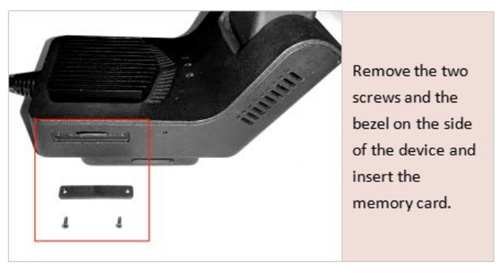

Memory card installation

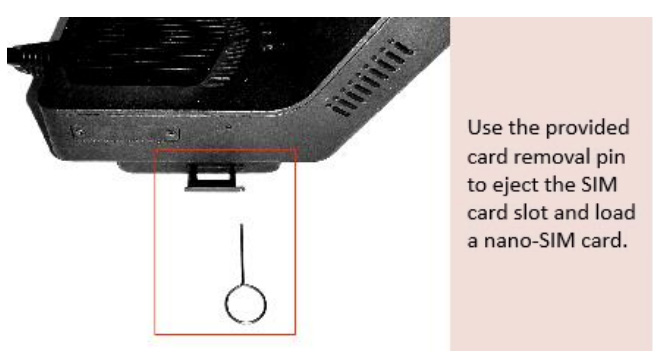

4G Card installation

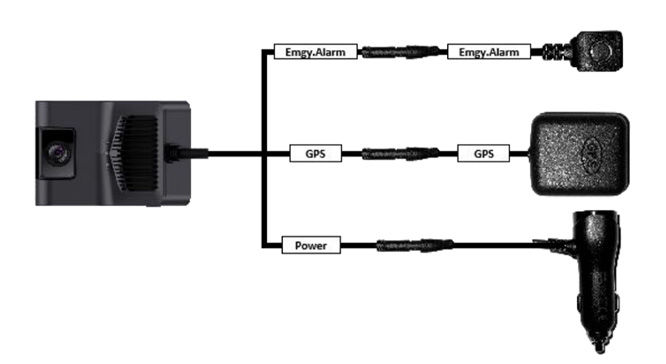

Line connection diagram
